6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining

6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining
6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining 6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining 6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining 6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining 6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining 6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining

Duży Obraz :  6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining and Precision Machining

Szczegóły Produktu:
Orzecznictwo: SONCAP, ISO, RoHS, TUV
Dokument: Broszura produktu w wersji PDF
Zapłata:
Minimalne zamówienie: 500
Cena: 1
Szczegółowy opis produktu
Stopień: Seria 6000 Hartować: T3-T8
Stop: 6063 Wykończenie powierzchni: Utlenianie anodowe
Wytrzymałość na rozciąganie: ≥ 265MPa Granica plastyczności: ≥ 245 MPa
Wydłużenie: ≥ 8% Zdolność produkcyjna: 50000 SZTUK / MIESIĄC
Maksymalna średnica: 350 mm Linie wytłaczania: 44
Linie anodujące: 6 Linie rozpylające proszek: 4
Centra Obróbcze: 12 Maszyny wykrawające: 30
Maszyny do gięcia: 10
Podkreślić:

Waterproof Electrical Box Aluminum Profile

,

Customized CNC Machining Aluminum Extrusion Profile

,

Precision Machining 6061 Aluminum Profile

6061 Aluminum Profile for Waterproof Electrical Box with Customized CNC Machining
MetalPlus manufactures high-quality customized standardized enclosures, including aluminum profile housing, die-cast aluminum boxes, standard aluminum chassis, rack mount housing, and CNC precision machined parts.
Product Features
  • Material Options: Al6063, Al6061, Al6005, Al6060 in T4, T5, T6, T66 tempers
  • Design Features: Slots in extrusion for PCB and component mounting
  • Surface Treatments: Anodizing, bead blasting, silk screening, various plating options, painting, powder coating, and more
  • Performance: Excellent EMC shielding, corrosion resistance, heat dissipation
  • Machining Capabilities: Drilling, bending, precise cutting, and fabrication
  • Applications: Communication, medical, photoelectric, safety, and instrumentation
Product Components
S/N Part Name Quantity Material
1 Extrusion profile 1 AL6063
2 Front and rear panels 2 AL
3 Screws 4/8 SS
Key Specifications
  • Aluminum top and bottom plate with case design
  • Ideal for rail transit, power equipment, marine monitoring, and harsh environments

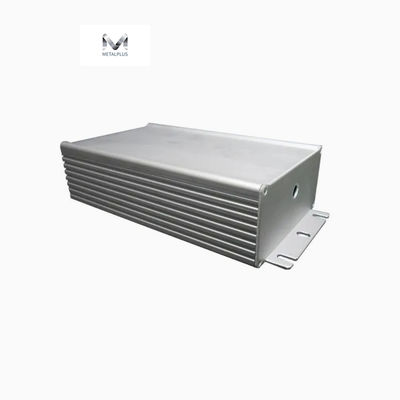

  • Extruded aluminum frame with die-cast panels for waterproofing and heat dissipation
  • Horizontal PCB/chassis mounting via inner-grooved frame
  • Suitable for industrial control boxes, outdoor WiFi access points, and measurement instruments
Technical Data
Chemical Composition (%):
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
  • Custom design services including CAD drawings and 3D models
  • R&D team for design optimization and cost reduction
  • Complete in-house production from design to surface treatment
  • Strict quality control throughout manufacturing process
Manufacturing Capabilities
Extrusion: 44 aluminum extrusion lines with maximum diameter of 350mm
Anodizing: 6 production lines with uniform oxidation film thickness
Painting: 4 powder spraying lines using Gema Switzerland equipment
CNC Machining: 12 PRATIC machining centers for complex profile processing
Quality Assurance
  • ISO9001:2015, ISO13485:2016 certified
  • SGS, RoHS, TU compliant
  • Strict quality control procedures
  • NDA (Non-disclosure Agreement) available
Applications
Inverters, signal amplifiers, video pushers, lithium-ion battery changers, mini hosts
